Application of Carrier Tape

Mar. 03, 2020

Carrier Tape refers to a strip-shaped product used in the field of electronic packaging. It has a specific thickness, and is equally spaced along its length with holes (also known as pockets) for electronic components and indexes positioning positioning holes. Carrier tape is mainly used in the electronic component placement industry. It is used in conjunction with a cover tape (upper tape) to load and store electronic components such as resistors, capacitors, transistors, diodes in the pocket of the carrier tape, and form a closed package by sealing the cover tape above the carrier tape. Protect electronic components from pollution and damage during transportation. When the electronic components are mounted, the cover tape is peeled off, and the automatic placement equipment takes out the components contained in the pockets in turn and accurately mounts them on the integrated circuit board through the precise positioning of the tape index hole.

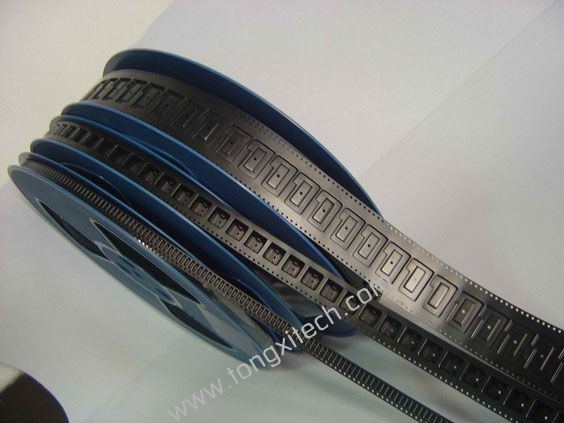

Carrier Tape


Carrier Tape


What are the two major functions of the carrier tape?


The main function of the carrier tape is one: it is used with the cover tape to carry electronic components.

It is used in the SMT plug-in operation of electronic components to store electronic components in a carrier tape package and form a package with a carrier tape cover tape to protect the electronic components from pollution and impact. When the electronic component is plugged in, the cover tape is torn apart, and the SMT equipment takes out the components in the carrier tape through the precise positioning of the carrier tape positioning holes in order to install them on the integrated circuit board to form a complete circuit system.


The main function of the carrier tape is two: in order to protect the electronic components from being damaged by static electricity.

Some precision electronic components have clear requirements for the antistatic level of the carrier tape. According to the level of antistatic, the carrier tape can be divided into three types: conductive type, antistatic type (static dissipative type) and insulating type.


The following Anti-static Shielding Bag Supplier takes everyone to understand the application of a download belt.


Carrier tape is mainly used in SMT plug-in operation of electronic components. Used in conjunction with a cover tape, the electronic components are stored in a carrier tape package, forming a package with the carrier tape cover tape to protect the electronic components from pollution and impact. When the electronic component is plugged in, the cover tape is torn apart, and the SMT equipment takes out the components in the carrier tape through the precise positioning of the carrier tape positioning holes in order to install them on the integrated circuit board to form a complete circuit system.


As the darling of the electronics industry, carrier tape is not known today by many people. The automotive industry also thinks that it is more unlikely to be related to carrier tape. Actually, as I think so, but when we really understand the car, we only find that the car also has an electronic control system. Then our car manufacturers need to use carrier tape and Our plastic disk, the ECU of the car, the control board is the main control system hidden in the car. This main control system requires electronic manufacturing to complete. Therefore, the carrier tape is used in various industries. As the use of the carrier tape increases the output of the car, the entire automobile manufacturing industry is revitalized.


The above is the knowledge about carrier tape introduced by Conductive Bag Supplier.
